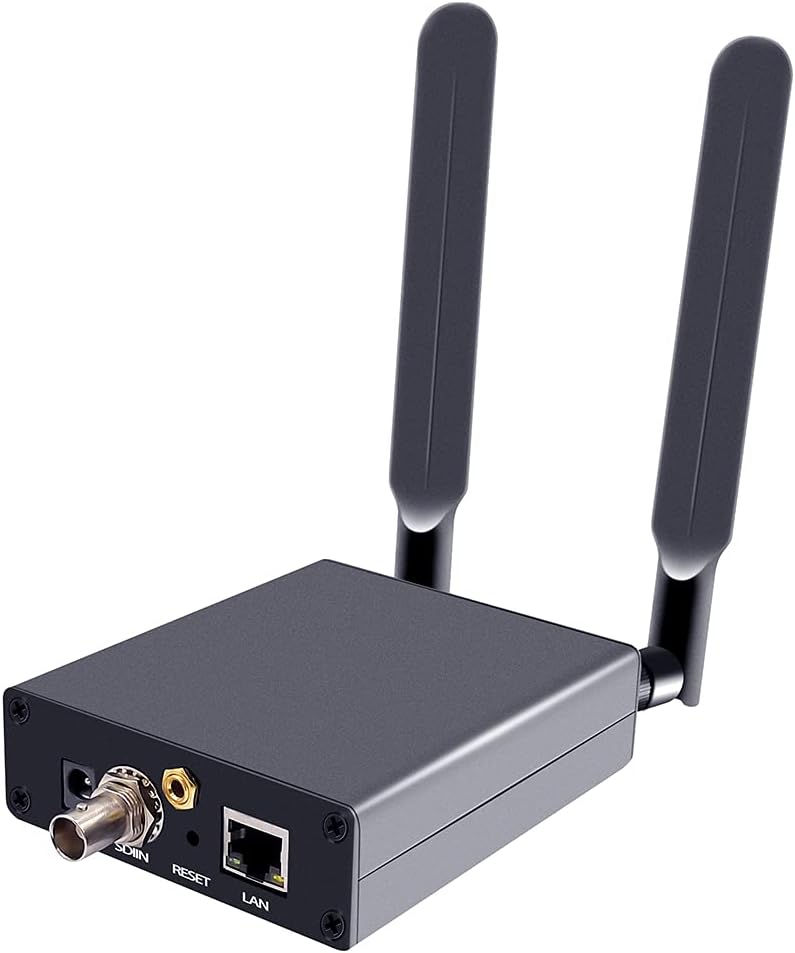

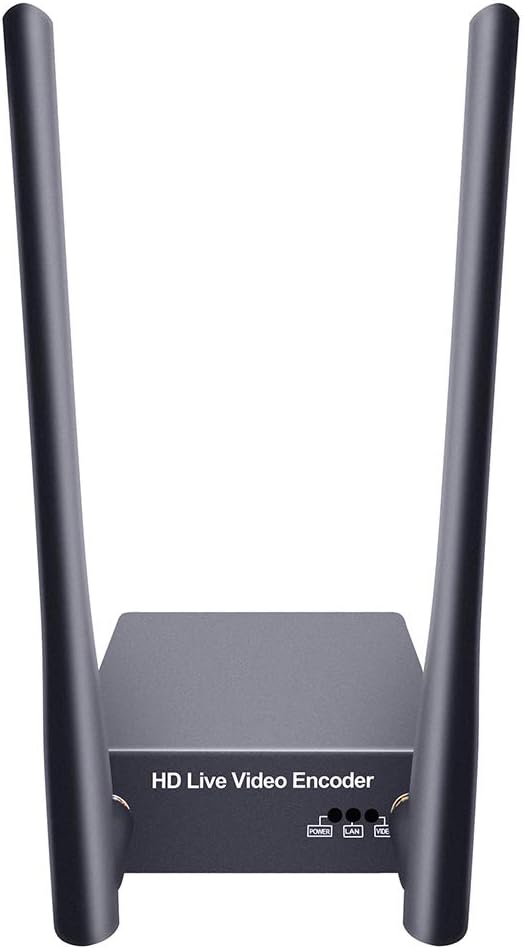

WiFi SDI Video Encoder for IPTV, Live Stream, Broadcast Y9447

Overview
H.265 WiFi SDI Video Encoder r is a professional audio & video encoding device. From any SDI input source, it generates H.265/H.264 video encoding and AAC/MP3 audio code 4 streams compliant with RTMP/RTMPS/SRT/RTSP/UDP/RTP/HTTP/HLS/FLV/TS protocols.
Applications
It can be widely applied in IPTV, live stream, broadcast, video conference, remote education, network video record.
Have been compatible with most of streaming platforms, you can go live at any time you like ,such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using WOWZA Streaming Server..

Specifications
Video
Video Input
1 channel SDI input
Resolution
Max 1920*1080P
Frame Rate
60fps
Video Encoding
H.265 MainProfile,H.264 high/hain/baseline Profile
Code Bit Rate
0.32Mbps~32Mbps
Bit Rate Control
CBR/VBR
GOP Type
IBBP
Video Advanced Pretreatment
De-interlacing, Noise Reduction, Sharpening

Audio
Audio Encoding
AAC,MP3
Sampling Rate
32K/48K/64K/96K/128K/160K/192K/256K
Sampling Accuracy
24 bit
Audio Bit Rate
64Kb/s~384Kb/s

System
RJ45
1000 Base-T Ethernet interface
WiFi
Dual band 300M HG WiFi
Protocol
HTTP, UDP, RTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, TS
Configuration Interface
WEB operation
Upgrading
Can be upgraded by Internet

Others
Dimension
77*106*26mm
Weight
0.3kg
Temperature
0~45℃(work),-20~80℃(storage)
Power
12V/DC
Consumption
5W
